1045 CF Bar
Chemical Composition
Carbon:              0.42%-0.50%
Manganese:       0.60%-0.90%
Phosphorous:     0.04% (Max)
Sulfur:                 0.05% (Max)
Properties

1045 Steel Properties

Tensile Strength:          91,000 PSI
Yield Strength:              75,000 PSI
Elongation:                   16%

*These numbers are "Typical" properties and may not be required to meet this grade. Please check with your Alro Sales Representative if physical properties are required for your application.*
Typical Uses

1045 CF Steel Bar Is Commonly Used For:

  • Gears
  • Hydraulic Shafts
  • Pneumatic Cylinders
  • Axles
  • Rolls
  • Studs
  • Crankshafts
  • Torsion Bars
  • Sockets

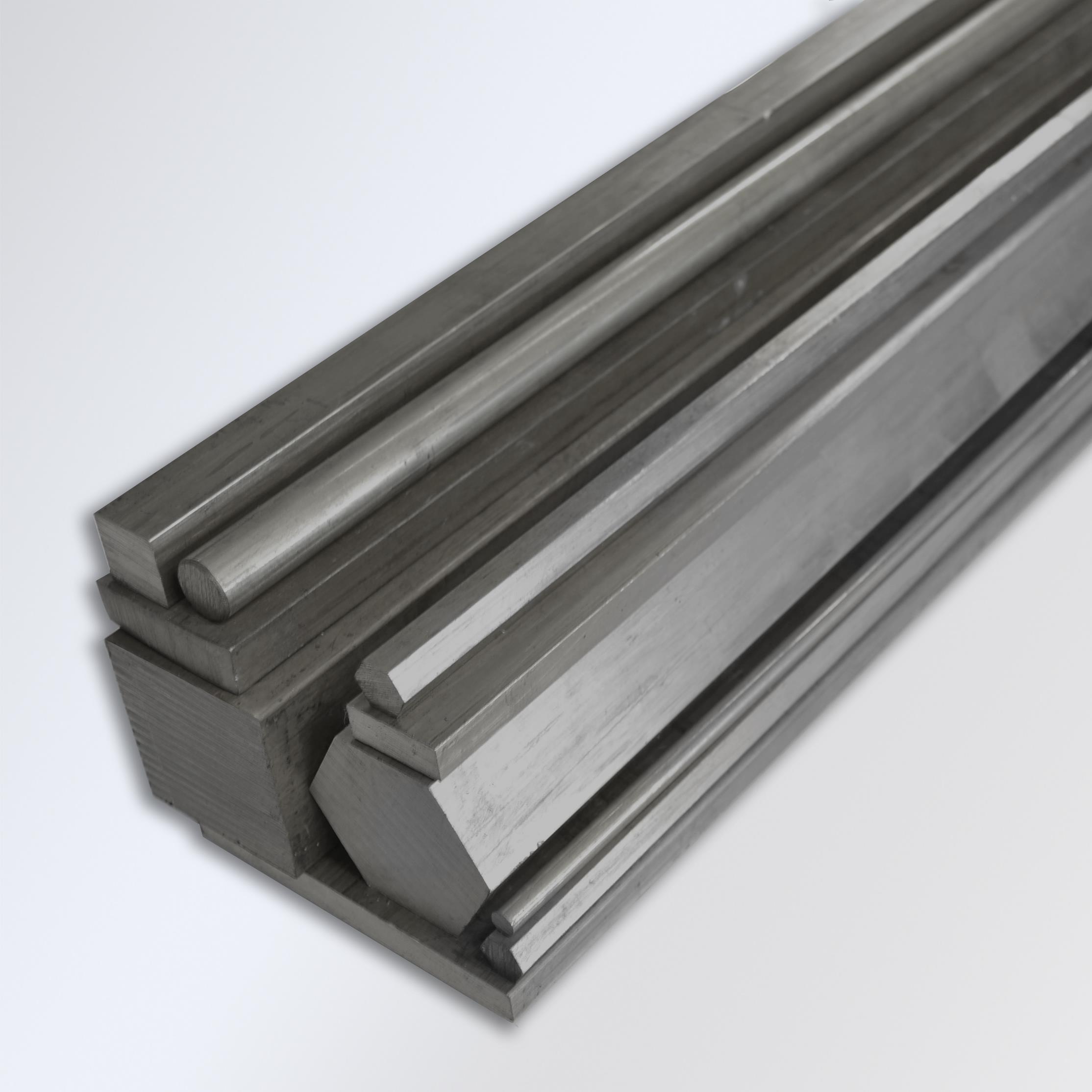

1045 CF Bar

1045 CF is a medium carbon steel used extensively in induction hardening applications. It can be forged satisfactorily and is the most common shafting steel in the medium carbon range.  Due to its carbon content, 1045 CF bar is only fair for welding or brazing. It is also not typically considered a screw machine steel.

The CF stands for cold finished, which provides increased machinability and mechanical properties. Cold finished bars are produced from Special Bar Quality Hot Rolled Bars which are put through cold drawing, turning, grinding, or a combination of these methods. The cross sectional area of the hot rolled bar is then cold reduced for an accurate size and smooth surface. Read our PDF on cold finished steel bar for more information.

Alro Steel stocks 1045 Steel Bar and with over 40 physical locations in 12 states we are able to service many customers with fast delivery. Select the red dot of the material you would like on the grid to start your online order or give us a call at 888-888-2576.
