1045 TG&P
Chemical Composition
Carbon:              0.42%-0.50%
Manganese:       0.60%-0.90%
Phosphorous:     0.04% (Max)
Sulfur:                 0.05% (Max)
Properties
Tensile Strength:          81,900 PSI
Yield Strength:              45,000 PSI
Elongation:                   16%

*These numbers are "Typical" properties and may not be required to meet this grade. Please check with your Alro Sales Representative if physical properties are required for your application.*
Typical Uses
Typical Uses Include:
  • Gears
  • Shafts
  • Axles
  • Rolls
  • Studs
  • Crankshafts
  • Torsion Bars
  • Sockets

1045 TG&P

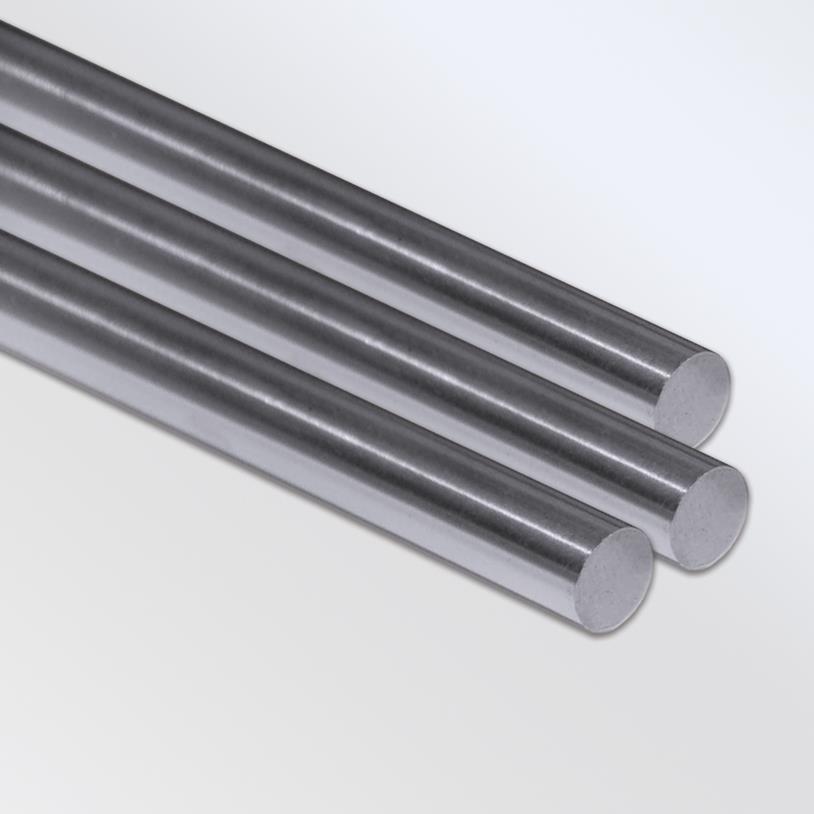

Alro stocks C1045 TG&P (Turned Ground and Polished) Steel - a medium carbon steel used extensively in induction hardening applications. 1045 is not normally considered a screw machine steel and is only fair for brazing and welding. However, it can be forged satisfactorily and is the most common shafting steel in the medium carbon range. This material has been turned, ground and polished for a nicer finish and tighter diameter tolerance.
