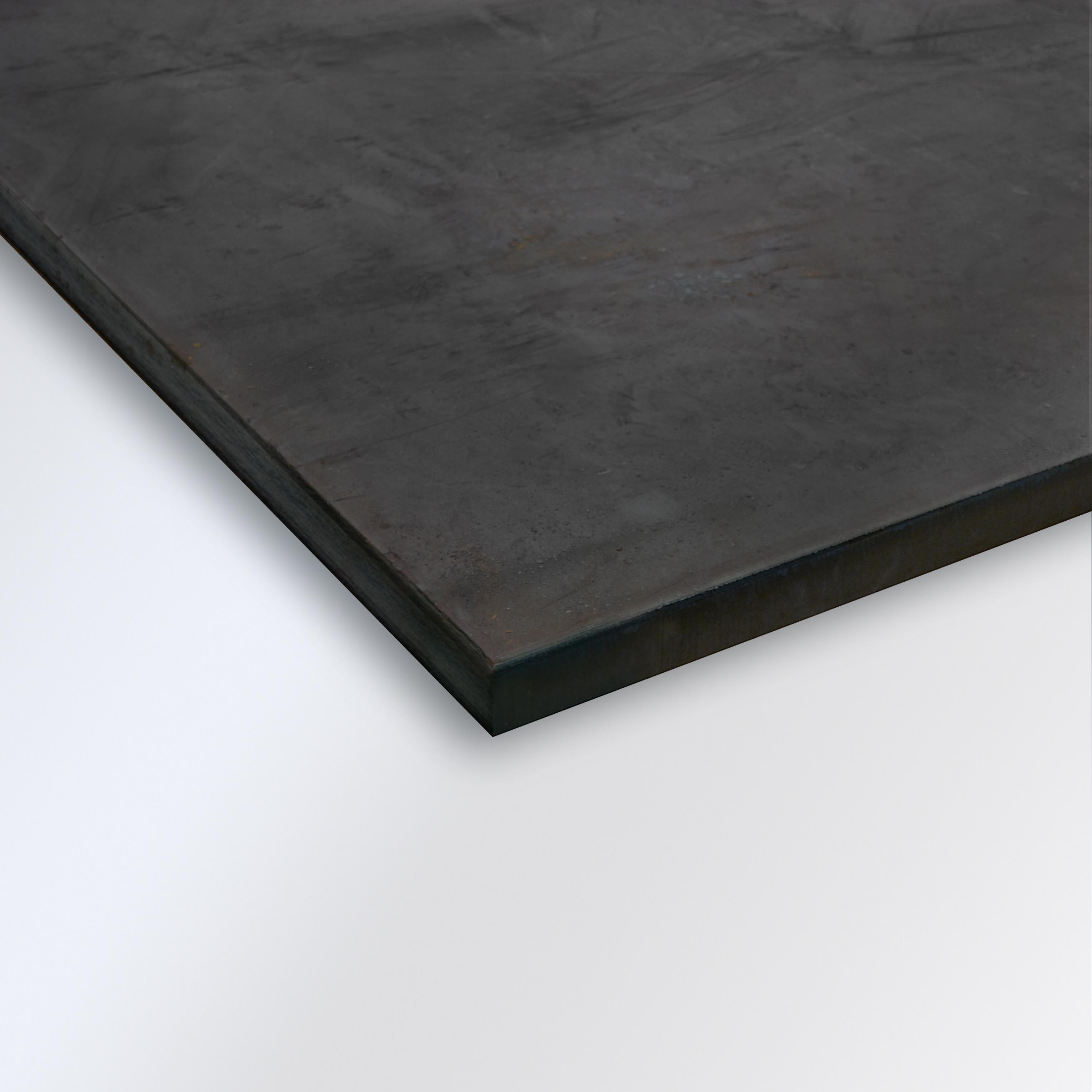

11-14% Manganese Plate
Chemical Composition
Carbon 1.20%
Phosphorous 0.020%
Silicon 0.15%
Sulphur0.020%
Manganese 11.00-14.00%
Properties
Brinell Hardness 200(approx.)
Tensile Strength 880  N/mm²
Yield Strength 320 N/mm
Elongation 40%
Typical Uses
The rapidity with which Manganese Plate hardens make this steel grade suitable for applications where the components must resist wear under conditions of sliding contact, often coupled with heavy pressure and repeated impact. Typical applications are wearing plates, stone or iron chutes, industrial trackwork, anti drill plates such as security doors, shot blasting equipment and tumbling machines.

Manganese Plate is the ideal solution for cases where severe wear is combined with shocks or high pressure capable of work-hardened its austenitic structure. Used in jaws of crushers, hammers or pulverizers, cutting edges of large excavators, liners of shotblasting units, cores and wall of parpen moulds, and screens.

11-14% Manganese Plate

About 11% to 14% manganese steel plate.

This high manganese grade is an excellent work hardening, abrasion resistant steel. This steel is a non magnetic austenitic type, supplied in full plates or as profiled pieces by plasma cutting.  Suitable for wear applications where high impact/gouging abrasion leads to a work hardening effect.

High manganese steel plate becomes increasingly hard when the surfaces of components are subject to repeated impact or abrasion. Its toughness, derived from high tensile strength and ductility, enables shock leads to be absorbed safely. Lack of lubrication or the intrusion of grit or sand particles does not seriously impair the wearing surfaces of components in contact. These characteristics combine to make high manganese steel plate an ideal steel for use as wearing plates in those situations where abrasion, impact, or lubrication difficulties are encountered. The steel has the unique property in service of rapidly developing a work hardened surface whilst retaining its tough interior.

Wear Resistance of Manganese Plate

Severe wear on the surface has a work-hardening affect on the austenitic structure of this steel. This leads to an increase from the initially low hardness (about 200 BHN) to a service hardness of at least 500 BHN. This work-hardening maintains itself through in-service life. The underlays not work-hardened maintain a very high resistance to shock.
