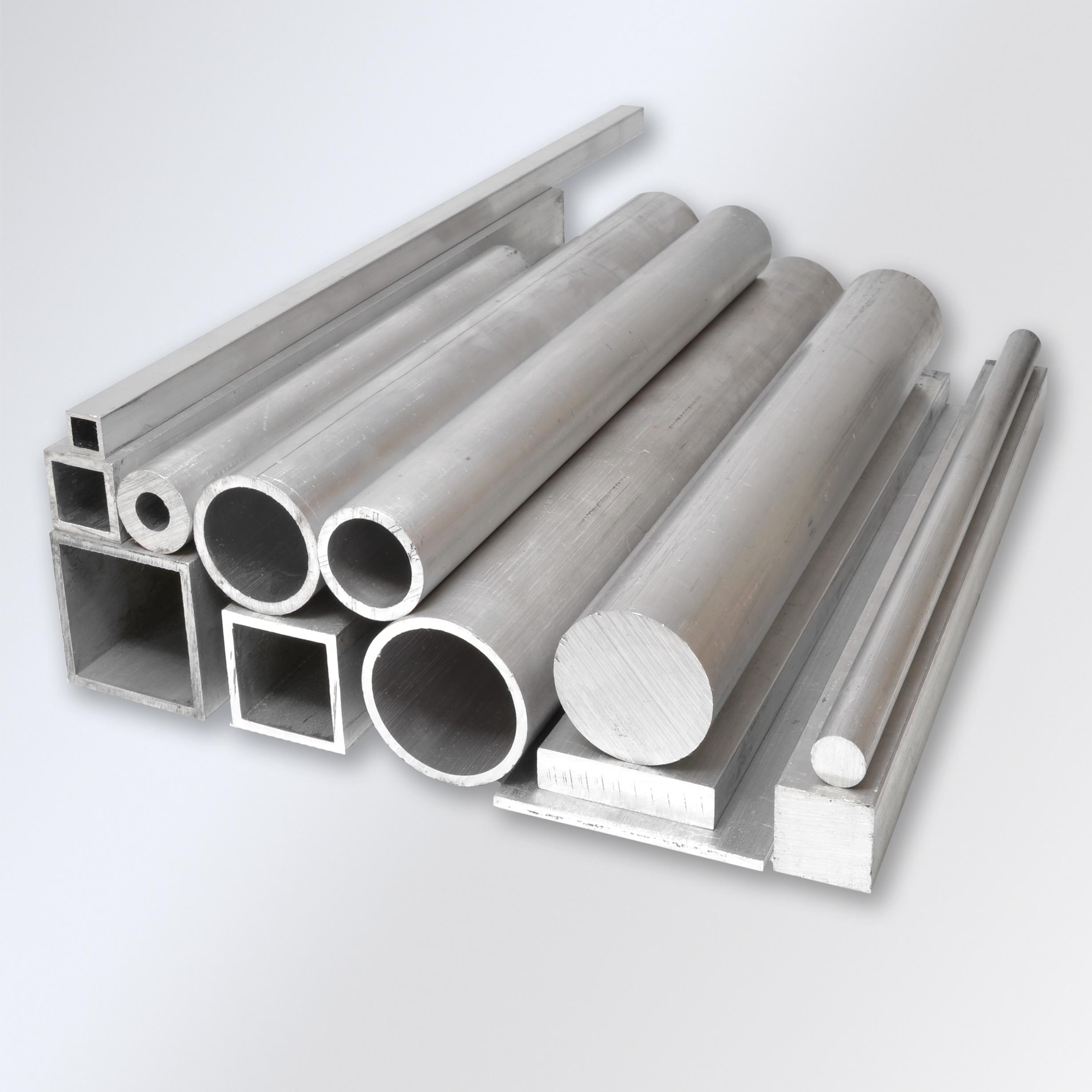

6063 Aluminum Pipe, Rectangle & Square Tube
Chemical Composition
Chromium:             0.18%-0.28%
Copper:                 1.2%-2.0%
Magnesium:            2.1%-2.9%
Manganese:            0.3% (Max)
Silicon:                   0.4% (Max)
Zinc:                      5.1%-6.1%
Aluminum:                87.1%-91.4%
Properties
Extruded aluminum 6063 provides good mechanical properties and is often used for comparatively intricate sections. It is also an excellent option for hollow extrusions and architectural applications. AL 6063 provides an excellent surface finish It and can be precipitation heat-treated to strengths just under 6061 alloy and it can be welded.
Tensile Strength:          83,000 PSI
Yield Strength:             73,000 PSI
Elongation:                  11%

*These numbers are "Typical" properties and may not be required to meet this grade. Please check with your Alro Sales Representative if physical properties are required for your application.*
Typical Uses
6063 Aluminum is typically used in:
  • Architecture
  • Window frames
  • Door frames
  • Roofs
  • Sign frames

6063 Aluminum

6063 is an aluminum alloy, with magnesium and silicon as the alloying elements. It has generally good mechanical properties and is heat treatable and weldable.
Aluminum 6063 is considered to have some of the best all-around extruding properties. 6063 extruded aluminum can be used for comparatively intricate sections. It is an excellent choice for hollow extrusions and architectural applications. This aluminum takes a good surface finish, is corrosion-resistant, and can be anodized. Its strength, as extruded, is somewhat higher than that of 3003. It can be precipitation heat-treated to strengths just under 6061 alloy. In tube form, it is used for irrigation pipe, furniture, electrical conduit, and handrails.
